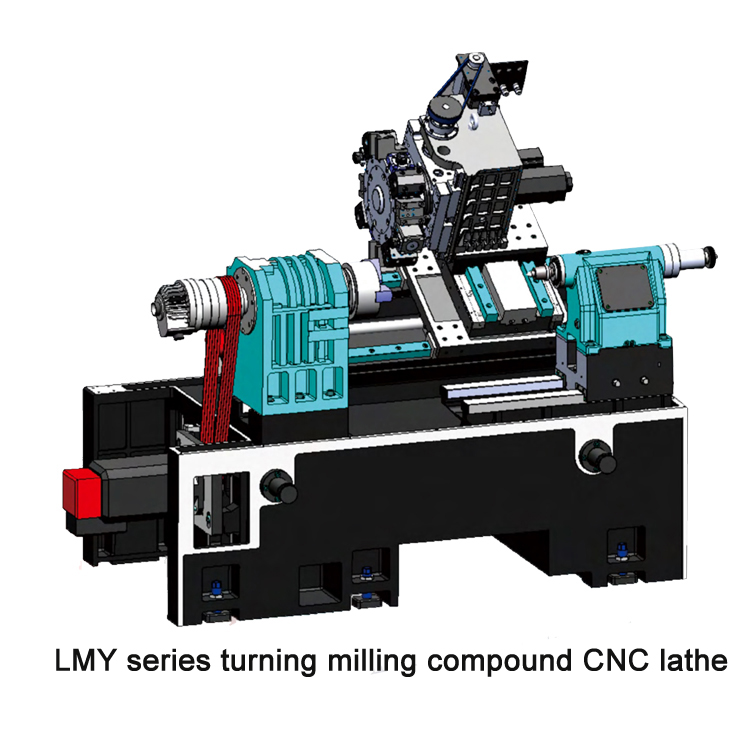

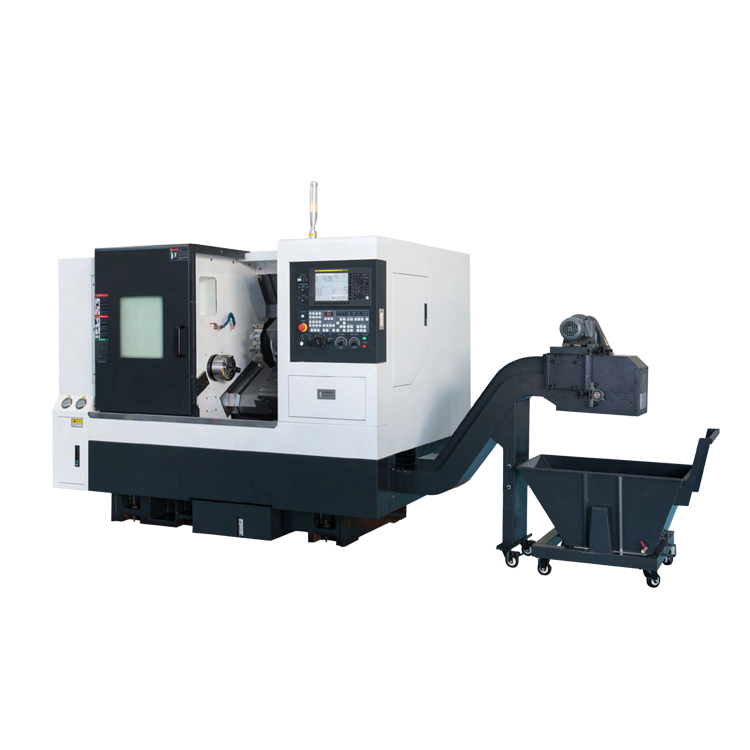

Equipment features:
1. The bed is made of HT300 cast iron and has a 30 ° inclined bed structure;
2. Wide square bed with 45/45 precision linear guide rail;
3. The horizontal structure of the spindle box and tailstock is more stable and rigid.
4. It is equipped with a high rigid servo power cutter tower to achieve axial and radial milling functions, spindle C-axis interpolation, indexing, positioning functions, and spindle oil pressure disc disc brake.
Equipment parameters：
| Main parameters (unit: mm) | |||
| TSC45L | TSC45LM | TSC45LMY | |
| Maximum turning diameter on the bed surface | Φ560mm | Φ650mm | Φ650mm |
| Maximum machining diameter | Φ450mm | Φ415mm | Φ350mm |
| Maximum turning diameter on sliding plate | Φ300mm | Φ200mm | Φ200mm |
| Maximum machining length | 500 | 300(BMT55) | 300 |
| Spindle head form | A2-6/8" | A2-5/8" | A2-5/8" |
| Spindle motor power | 11kw | 11kw | 11kw |
| Maximum spindle speed | 4200rpm | 4200rpm | 4200rpm |
| Diameter of spindle hole | Φ66mm | Φ66mm | Φ66mm |
| Bar diameter | Φ52mm | Φ52mm | Φ52mm |
| X/Z axis limit stroke | 230/610 | 225/600 | |
| X/Y/Z axis limit travel | 210/100/610 | ||
| X/Y/Z axis screw rod specification | 3210/3208/4010 | ||
| X/Y/Z axis rail specification | 45/35/45 | ||
| Turret Station | NC100-12T | BMT45(55)/12T | BMT55/12T/ER25 |
| Tool size/shank size | 25/Φ32 | 25/Φ32 | 25/Φ32 |
| Maximum speed of power head | 5000rpm | ||
| Diameter of tailstock sleeve | 80mm | 80mm | 80mm |
| Tailstock sleeve stroke | 80mm | 80mm | 80mm |
| Maximum stroke of tailstock | 450 | 450 | 450 |
| Taper hole of tailstock sleeve | Mohs 4# | Mohs 4# | Mohs 4# |
| Overall dimensions (L * W * H) | 2660*1750*1900 | 2450*1500*1900 | 2660*1750*2200 |
| Weight (about weight) T | 4000kg | 4200kg | 4600kg |
